50a PID Complete Control Panel Kit

Model: EB-ckp0522-config


Build your own new brewery control panel using our complete hardware kit. Save time and energy, while we ship everything you need in one trip.

In stock

Secure online ordering

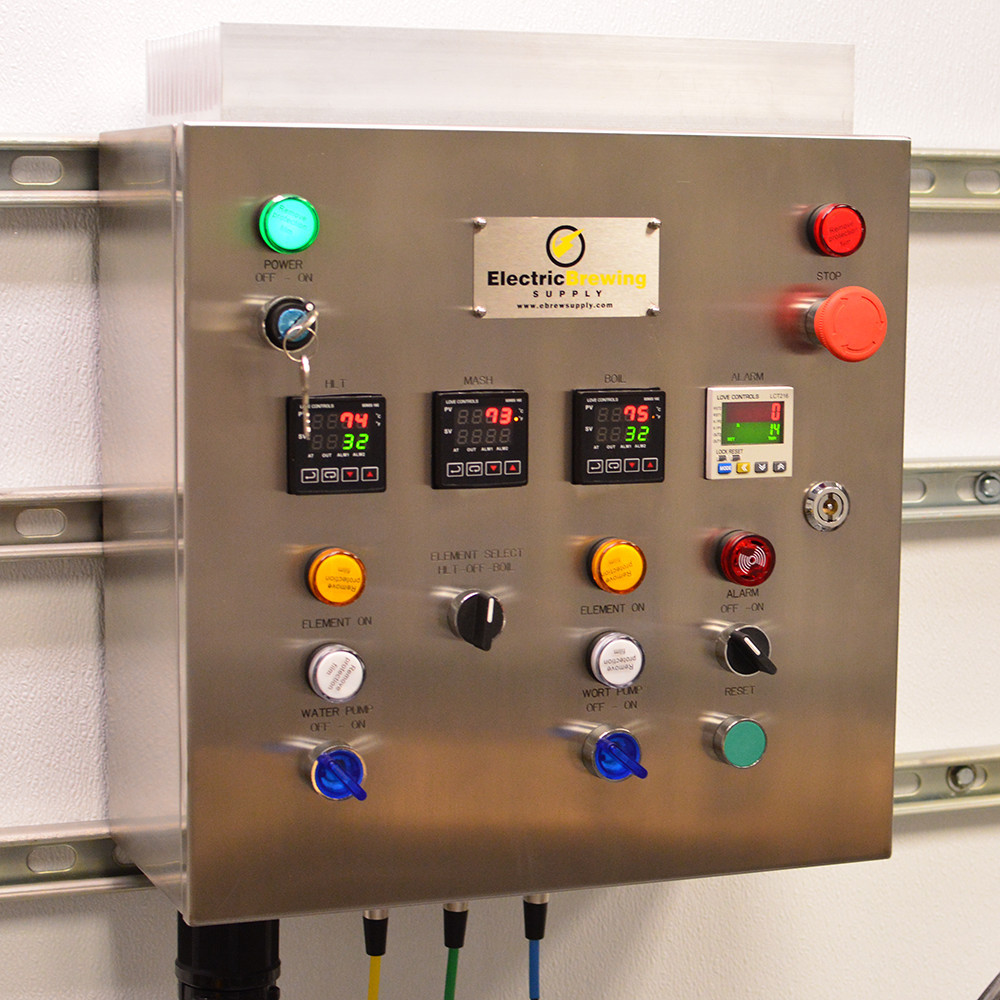

  • Let us help you get started. Note an update to switches, for simplicity sake and to provide you options in your build, we now ship both the 2-way toggle, the 2-way blue LED toggle, and the 2-way push button switches in any complete kit order. Let us help you get started. Build a complete 50a PID control panel using our complete package.  Here we provide the parts you need to build an electric brewing panel from the box out. The resulting panel should be a complete version of the panels we build and sell or you can customize further. We include extra 2-way switches and LED style switches allowing you to customize.  All the hardware and wire you may need to get your panel built is shipped in for one price. The kit includes: Basic Kit Hardware 8 - LEDs (2 white 220v, 2 yellow 110v, 2 blue 110v, 1 red 110v, and 1 green 220v) 1 - Alarm Buzzer LED 1 - Emergency Stop locking push button with NC Contact 2 - 2-Way Switches with NO Contacts for element (on-off) 2 - 2-Way Switches with NO Contacts for pumps (on-off) 2 - 2-Way Toggle style Blue LED Switches with NO/NC Contacts for pumps (on-off) 4 - 2-Way Switches with NO Contacts for alarms (on-off) (ships with only 1 for pre-cut panels) 1 - Additional NO Contacts for back of emergency stop 4 - Additional NC Contacts for back of 2-way switches 1 - Key toggle Switch for panel on/off 1 - MK2P-NS AC110 General Purpose Relay for safe power up 3 - 63a DIN Contactors w/ 110v Coils for main power and for element control 2 - 40a Solid State Relays for BCS control of elements and pumps 1 – Large pre-drilled and tapped heat sink for element SSRs 1 meter of DIN rail cut in 1/3m increments 25 - Terminal Blocks for wire from 6-24 awg 2 - New style 32a 2 pole DIN Rail Breaker 1 - New style 6a 1 pole DIN Rail Breaker 12 - Terminal block anchoring ends 8 - Terminal block end covers 6 - Terminal block separators 3 - Terminal block connecting bridge pieces Enclosure and outlets 1 – Enclosure (either painted or stainless steel) 2 – L6-30 Flanged outlets for elements 2 – L5-15 Flanged outlets for pumps 1 – C6375 flanged inlet for main power supply 2 – L5-15 plugs for pumps 1 – C6364C Connector for main power supply 3 – XLR Male connectors for temperature input Tags for panel include: Power / Off-On 4 x Alarm / Off-On (Only 1 for pre-cut design) Stop Boil Element / Off-On HLT Element / Off-On Water Pump / Off-On Wort Pump / Off-On 2 x HLT 2 x Boil Mash Water Pump Wort Pump HLT Probe MASH Probe Boil Probe 240v / 50a 120v / 6a Reset Start PID Temp controller, PID Timer and temperature probes 3 - Love 16C (SSR Output) PID Temperature control units 1 - LCT216 timer 3 - 1/2 inch MPT x 1-1/2 inch RTD100 Temperature Probes with 8/12 ft braided cables 3 - 1/2 inch Locknuts - for weldless mounting 3 - 1/2 inch washer and o-rings - for weldless mounting 3 – XLR Female connectors for temperature probes 36 ft of 1/8 inch braided poly sleeve for temperature probes 3 cuts of 4 inch x 1/8 inch heat shrink tubing for temperature probes Wiring and wire fittings 6 ft Range style main power cable with 14-50 end 15 ft of black 6 gauge wire 15 ft of black 10 gauge wire 15 ft of red 10 gauge wire 10 ft of green 10 gauge wire 30 ft of black 14 gauge wire 20 ft of white 14 gauge wire 4 ft of yellow 14 gauge wire 4 ft of orange 14 gauge wire 4 ft of blue 14 gauge wire 4 ft of purple 14 gauge wire 12 ft of pink 14 gauge wire 12 ft of pink 14 gauge wire 30 ft of black 18 gauge wire 18 ft of yellow 18 gauge wire 28 ft of orange 18 gauge wire 30 ft of white 18 gauge wire 4 ft of tan 18 gauge wire 10 - #10 Yellow Spade connectors for 10ga wire connections on SSR relays 100 - #6 Blue Spade Connectors for most 110v wiring throughout the panel 50 - #6 Red spade connectors for the low voltage and temp probe wiring 5 - #10 Blue ring connectors for grounding wire on enclosure posts *** OPTIONAL UPGRADES *** Pre-cut painted enclosure ($50) - highly recommend planning to paint upon receipt. Stainless steel enclosure (add $50) Stainless steel Pre-Cut enclosure as pictured (add $125) Note that pre-cut enclosure typically can add 3-4 days to delivery as portions are made to order  Package also includes a printed copy of our wiring guide. Tools you will need include: Wire Cutters Wire strippers Crimping tools for spade and ring connectors Phillips screw driver(s) Flat head screw driver(s) Zip ties and zip tie bases (optional) Soldering Iron for temp probe assembly If you are cutting your control panel 7/8" Hole saw or step bit for LEDs and switches 3/4" hole saw for XLR panel connectors 1-1/2" hole saw for flanged pump outlets 2-1/8" hole saw for flanged element outlets 2-1/4" hole saw for flanged inlet for power supply Dremel or other rotary tool for cleaning up edges Angle grinder or rotary tool for cutting heat sink hole(s) in top Sand paper and paint always recommended for painted enclosures.
